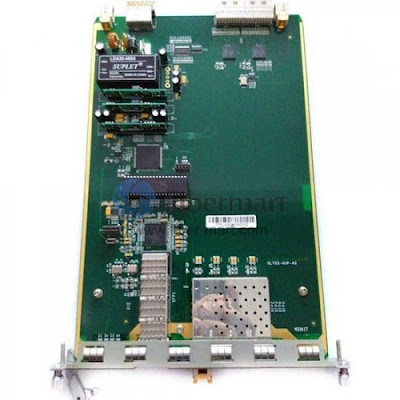

FM-E660T 4-Uplink Interfaces Module EPON OLT

FM-E660T 4-Uplink Interfaces Module EPON OLT


FM-E660T is a miniaturization and modularization GEPON OLT, broadband fiber access system platform, developed by FM. It is fully compliant to IEEE802.3-2005 and Chinese technical requirements of Ethernet Passive Optical Network (EPON). This product supports integrated access service, such as broadband surf-netting, IP voice, IPTV, CATV and etc.

Key Features

  • With Twin-star bus 10Gigabit core switch backplane, support non-blocking wire-speed switch, support 1.25G EPON optical fiber access.
  • 8U height, adopt full front-wiring, high capacity, maximum EPON optical fiber interfaces reach up to 40.
  • Full-load provide double main control modules, double uplink modules, double power supply modules and 10 service interface modules.
  • High reliability, support AC and DC dual power supply, with active/standby switch protection function of power supply module, core switch module and uplink interface module.
  • Support flexible controllable multi-cast, IGMP Proxy/Snooping and etc.
  • Support strong VLAN extension functions, including VLAN Stacking/Trunk/Translation, etc.
  • Support ONU auto-recognizing, auto-detecting, pre-configuration management, support hybrid MAC and SN authenticate approval function.
  • Support flexible DBA, uplink/downlink service rate-limited, precision up to 0.2% (Standard requirement<5%)
  • Adopt multi LLID and IEEE802.1p technologies, provide multi protection QoS service.

    • Equipment Components

    No.ItemFull load QtyDescription
    1Equipment frame1OLT equipment frame, including 10Gigabit core switch backplane
    2Main control module (SWA)2Hot-swappable module, integrate 1 FE out of band management port, 1 debugging serial port, 10Gigabit class non-blocking switch)
    3EPON interface module (EP4)10Hot-swappable 4 EPON interfaces modules, compliant with IEEE802.3-2005 EPON technical standard, support 20km transmission distance (Standard configuration without optical module)
    4Uplink interface module(HUP)2Hot-swappable 4 GE interfaces module, SFP slot, support 4GE+10GE XFP(Standard configuration without optical module)
    5Fans module(FAN16)3Hot-swappable fans module
    6Power module(PWR)2Hot-swappable power supply module supports 220VAC/48VDC (With UPS charger). Builds dual power redundant hot backup with dual power supply

    Hardware features

    Equipment parametersDimension486mm(W)*103mm(H)*384mm(D)
    Net weight15Kg
    Power consumption≤400W
    Operating conditionTemperature:0 ~ +55℃, humidity:10 ~ 90% (non-condensed)
    Storing conditionTemperature:-25 ~ +70℃, humidity:10 ~ 90% (non-condensed)
    Power supplyDC36 ~ 75 VDC
    AC176 ~ 264 VAC
    Equipment interfaceUplink Ethernet interface1*10GE(XFP connector), 4*GE interfaces (GE or SFP connectors)
    EPON interface40*EPON SFP interfaces
    Console debugging interface1 interface, compliant with RS232 technical standard
    Out-of-band management interface1 interface, compliant with 100Base-TX technical standard
    Monitor and alarm interface1 interface, compliant with RS485 technical standard (Support sub-node monitor )


    About FIBER-MART(Fiber-MART.COM)


    FIBER-MART(Fiber-MART.COM), based in HongKong & U.S., belongs to SUNMA Group, a worldwide leading supplier in fiber optic network, fttx, fiber cabling & connectivity, fiber testing, fiber splicing, fiber polishing & integrated network solutions. Devoting on the research & development, design, manufacture, and fiber connectivity network solutions for carriers, ISPs, content providers and networks, has always engaged in high-performance and innovation.

    Our goal is to create value for worldwide customers continuously with high-quality products and excellent services in the field of optical communication.
