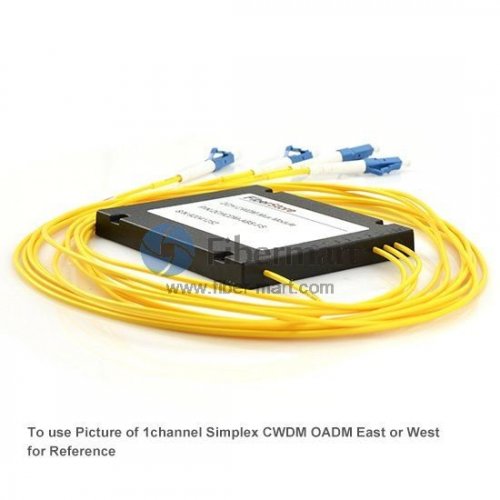

16 channels ABS Pigtailed Module Duplex CWDM OADM

16 channels ABS Pigtailed Module Duplex CWDM OADM



FM SKU#:SKU00513I
Model#:16DWE-ABS-FMCADM
link#:http://www.fiber-mart.com/16-channels-abs-pigtailed-module-duplex-cwdm-oadm-eastandwest-p-1463.html

Duplex CWDM OADM for East-and-West Traffic

The Duplex CWDM/AD modules add (multiplex) and drop (demultiplex) selected wavelengths over dual fiber Duplex CWDM MUX & DEMUX link for East-and-West Traffic.

Fiber-Mart CWDM OADM ( CWDM/AD) modules are Course Wave Division Multiplexing (CWDM) Optical Add and Drop Multiplexers (OADM). "Add" and "drop" here refer to the capability of the device to add one or more new wavelength channels to an existing multi-wavelength WDM signal, and to drop (remove) one or more channels, passing those signals to another network path.

The CWDM/AD is a passive optical add/drop multiplexer designed for point-to-point, ring, or bus configurations' applications that provides the ideal solution for the increasing bandwidth demand on enterprise and metro access networks and delivers dramatic cost savings to network equipment manufacturers, enabling them to develop metro access systems that are lower in cost, easier to provision and simpler to operate.

Added/dropped channels are interfaced to any of Fibertsore CWDM transceivers on the equipment side, and we also provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Front Panel Details


NOTE:
  • Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same
  • We also provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice, need more details, please contact at sales@fiber-mart.com
  • When using with 1310nm legacy SDH/SONET, CWDM wavelengths 1270, 1290, 1310, 1330 and 1350nm should not be used.
  • When using with 1550nm legacy SDN/SONET, CWDM wavelengths 1510, 1530, 1550, 1570 and 1590nm should not be used.

    • Item Details

  • 16 channels CWDM OADM
  • 2 x Common ports for West and East traffic: Duplex Connector
  • All Add/Drop Channels for West and East traffic: Simplex Connector; Channel separation 20nm from 1270nm to 1610nm
  • 2 x ABS Pigtailed box housing, one is for Add, the other is for Drop
  • OADM complement to the express CWDM product line
  • Compliant to ITU-T G.657A1 CWDM standard
  • Protocol and rate transparent for applications up to 10Gbp
  • Low-cost transceivers applicable, existing equipment can still be used
  • It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
  • Front panel is equipped with adapters according to customer choice (see options)
  • ISO 9001 manufacturing facility
