How to Troubleshoot Common Issues with Polarization Maintaining Fiber Splitters

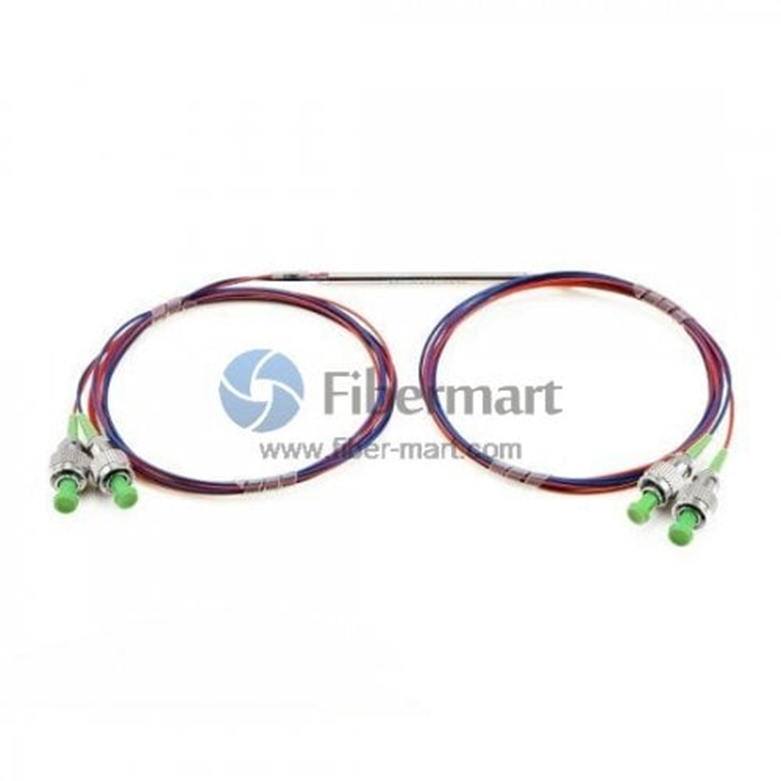

Polarization Maintaining (PM) fiber splitters are critical components in various high-precision optical systems, particularly those involving coherent light. These devices ensure that the state of polarization (SOP) of the light is preserved while splitting the optical signal.

However, like any sophisticated technology, PM fiber splitters can encounter issues that impact their performance. Understanding and troubleshooting these common issues can help maintain the integrity of your optical systems and ensure optimal functionality.

PM Fiber Splitters: Basic Principles PM fiber splitters are designed to maintain the polarization state of the input light, meaning they separate the light into two orthogonal polarization modes (usually X and Y) and direct them to different output ports. This is achieved by incorporating a stress-inducing mechanism within the fiber core, typically through elliptical shaping or doping with birefringent materials.



Common Issues and Troubleshooting

Insertion Loss

Problem: High insertion loss indicates a significant portion of the input signal is lost within the splitter. This can degrade the overall system performance.

Troubleshooting

Check for contamination: Clean the connector ends of the input and output fibers with alcohol wipes to remove dust or debris.

Verify connector alignment: Ensure proper alignment of the fiber connectors with the splitter ports. Misalignment can lead to significant insertion loss.

Inspect for fiber damage: Examine the fibers for any scratches, cracks, or bends, as these can cause signal attenuation.

Consider aging: If the splitter is old, the performance may naturally degrade over time.

Polarization Extinction Ratio (PER)

Problem: Low PER indicates the splitter is not effectively separating the two polarization modes. This can lead to signal mixing and reduced system sensitivity.

Troubleshooting

Check for stress on the fibers: Excessive stress on the input or output fibers can affect the polarization state of the light.

Verify temperature stability: Ensure the operating temperature of the splitter is within the specified range. Temperature fluctuations can impact PER.

Consider wavelength compatibility: Ensure the splitter is designed for the specific wavelength of the input light. Using an incompatible wavelength can lead to reduced PER.

Crosstalk

Problem: Crosstalk occurs when light from one polarization mode leaks into the other output port. This can cause signal interference and degrade system performance.

Troubleshooting

Check for misalignment: Ensure proper alignment of the fiber connectors with the splitter ports.

Verify connector cleanliness: Clean the connector ends to remove any contaminants that might be causing scattering.

Consider splitter quality: Low-quality splitters may have inherent crosstalk issues.

Back-reflection

Problem: Back reflection occurs when a portion of the input light reflects back into the source. This can cause unwanted noise and instability in the system.

Troubleshooting

Check for connector quality: Ensure the connectors are clean and have good surface quality. Poor connector quality can lead to back-reflection.

Use angled connectors: Angled connectors can significantly reduce back-reflection compared to flat-faced connectors.

Consider isolators: Optical isolators can be used to block back-reflection and improve system stability.

Additional Tips

Consult the manufacturer's datasheet: Always refer to the specific datasheet of your PM fiber splitter for detailed specifications and troubleshooting guidance.

Controlled Environment: Maintain a stable environment with controlled temperature, humidity, and minimal physical vibrations.

Proper Handling: Handle PM fibers and splitters with care to avoid physical stress and damage. Use appropriate fiber management systems to prevent excessive bending or twisting.

Periodic Testing: Use polarization analyzers, optical time-domain reflectometers (OTDR), and other diagnostic tools to regularly test the performance of your PM fiber splitters.

Documentation and Tracking: Keep detailed records of all maintenance activities, test results, and any issues encountered. This can help in identifying patterns and preemptively addressing potential problems.

Use high-quality components: Invest in high-quality PM fiber, connectors, and other components to minimize potential issues. If the problem persists, seek assistance from a qualified optic technician at Fibermart.
